Kubota 03 Series V2403-M-DI-E3B Specifications & Information

Specification is subject to change without notice.

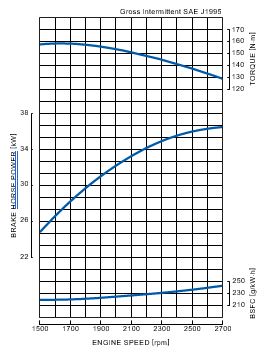

Output: Gross Intermittent SAE J1995

Dry weight is according to Kubota’s standard specification. When specification varies, the weight will vary accordingly.

Features and Benefits

Emissions

• The V2403-MDI naturally aspirated engine complies with EPA Interim Tier 4 emissions regulations that are effective through the end of 2012. This engine also complies with EU Stage #A requirements that are effective through 2012 and beyond in the European market.

Durable Power

• The Kubota 03-M Series is well recognized for industrial applications. With numerous features such as a built-in solenoid, low fan position, and single side serviceability, this engine offers excellent performance characteristics and application flexibility.
• The cooling water passages between the cylinder bores, using Kubota’s original casting technology as a countermeasure against heat load of high power density, provides both superior endurance and reliable engine characteristics.
• The V2403-M-DI NA engine offers a seamless transition from Tier 2 to Interim Tier 4 by maintaining the same footprint and hard mounting points with only slight performance changes from the Tier 2 engine.

Clean and Quiet Power

• For a more complete combustion, Kubota increased the fuel injection pressure. Kubota achieves a 50% lower particulate matter (PM) level, the same stringent level as above the 37kW class (EPA Interim Tier 4 Option1).
• The half-float valve cover and MoS2 coated pistons lower noise levels by 1.0-2.0 dBA over conventional diesel engines and provide reduced transmitted vibration from the valve area for better noise characteristics.

Option

• The Kubota 03-M Series engines offer side power take- off(PTO), in response to the trend of increasing hydraulic control devices in industrial machines. It is possible to install a hydraulic pump at two side PTO locations.
• An Indirect Injection engine is also available.
