Caterpillar 3406 Marine Engine Propulsion Info

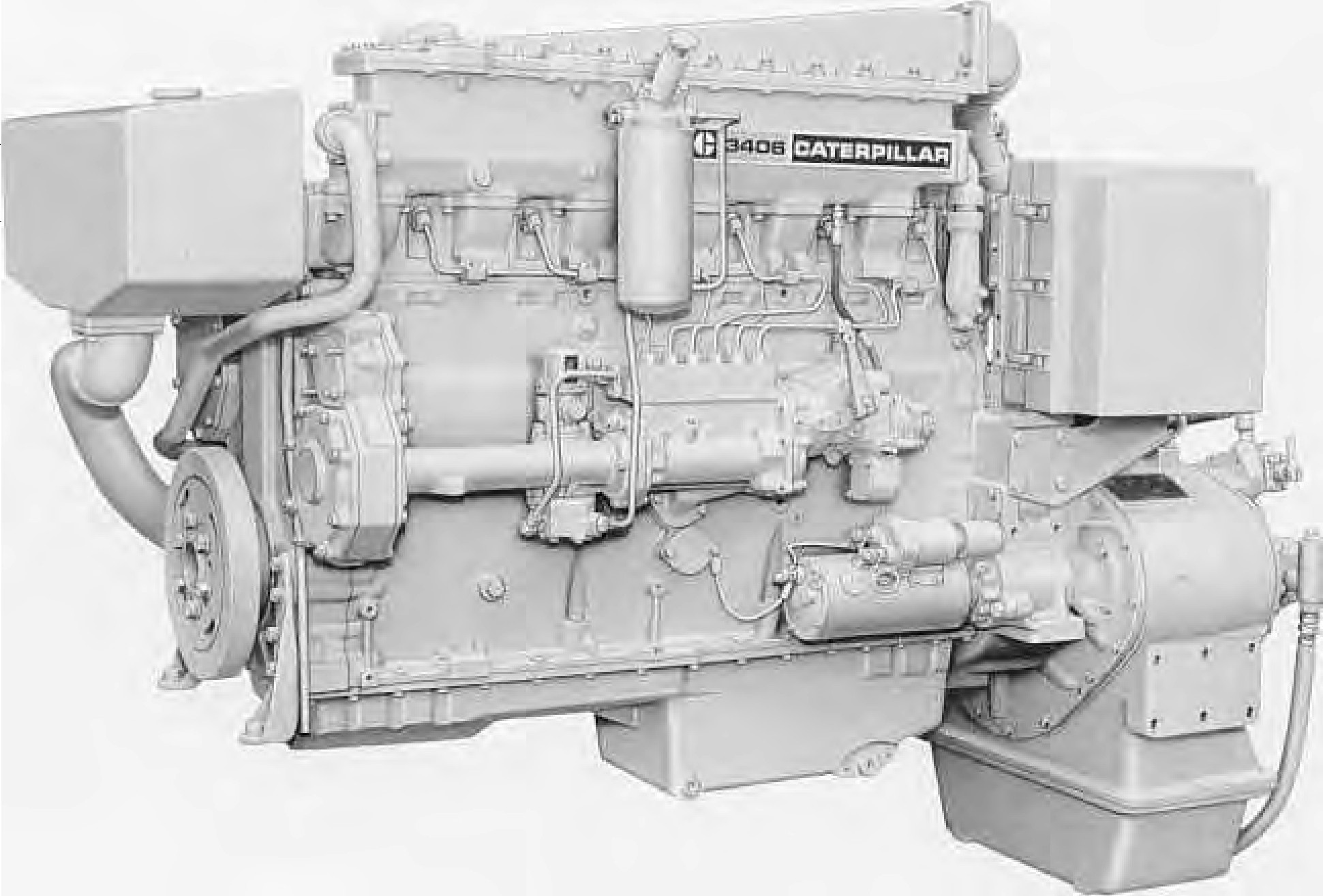

Caterpillar 3406 Engine

Marine Engine



Maximum (Flywheel)*
@2100 RPM
465 BHP
472 HP
295 BHP
401 HP
395 BHP
401 HP
Intermittent (Flywheel)*
@2100 RPM
375 BHP
380 HP
325 BHP
330 HP
325 BHP
330 HP
Continuous (Flywheel)
@1800 RPM
275 BHP
279 HP
250 BHP
254 HP
235 BHP
238 HP
Continuous (Shaft)
@1800 RPM
265 BHP
270 HP
240 BHP
245 HP
225 BHP
228 HP
Aspiration
TA
T
T
Approximate Fuel Consumption
@ Full Continuous Shaft HP
15.4 Gal/Hr
58.3 Ltr/Hr
13.1 Gal/Hr
49.6 Ltr/Hr
12.0 Gal/Hr
46.0 Ltr/Hr

Parts for 3406 Caterpillar Engines

Description



Four-stroke cycle Diesel engine



Number of cylinders


n-line 6
Bore and stroke:
inches

5.4 x 6.5

millimetres

137 x 165
Displacement:
cu. in

893

litre

14.6
Low idle speed (RPM)


600
Engine rotation


CCW (only)
Dry weight, approximate

Lb
Kg

Engine only
3075
1400

Engine with Twin Disc Gear



MG512, MG514 (3.5:1 only)
4271
1937

MG514
4576
2076

MG514M
4786
2171

MG509
3735
1699

Attachments



  • Remote Actuated Controls
  • Rack Solenoid Shutoff (24 or 32 volt)
  • Pilot House Controls
  • Heat Exchangers-Keel Cooling
  • Arrangements Auxiliary Seawater Pump
  • Flexible Exhaust Fittings, Elbows and Flanges
  • Flexible Fuel Lines Primary Fuel Filters Tachometers
  • Engine-Mounted Instrument Panels Pilot House Instrument Panels Remote-Mounted Oil Filters Auxiliary Pulleys
  • Oil Pressure, Water Temperature and Overspeed Contactors
  • Starting, Air, Electric and Hydraulic Alternators
  • Glow Plugs
  • Bilge Pumps and Drives
  • Keel Cooling Connection Group Sump Pumps
  • MG512 Marine Gear: 2:1, 3:1 F & R Gear Ratios
  • MG514 Marine Gear: 3.5:1, 4.5:1, 6.0:1 F & R Gear Ratios
  • MG514M Marine Gear with Omega Power Control: 4.5:1, 6.0:1
  • MG509 Marine Gear: 1.45, 2.0, 2.95, 3.83, 4.5:1 (For 235 HP Version)

Additional attachments and alternate locations are available. Consult your Caterpillar Representative for specific requirements.

Standard Equipment



  • Lube Oil Cooler
  • Tachometer Drive
  • Fuel Filter (Spin-on) Type
  • Lube Oil Filter (Spin-on) Type
  • Flywheel
  • Flywheel Housing, SAE #1
  • Hydra-mechanical Governor
  • Lifting Eyes
  • Watercooled Exhaust Manifold
  • Oil Filler and Dipstick
  • Fuel Priming Pump
  • Fuel Transfer Pump
  • Jacket Water Pump, Gear Driven, Centrifugal
  • SAE Standard Rotation
  • Service Meter
  • Watercooled Turbocharger
  • Front Supports
  • Expansion Tank
  • Automatic Variable Timing
  • Vibration Damper
  • Marine Gear Oil Cooler
  • Air Fuel Ratio Control

Ratings & Other Information



Continuous is the horsepower and speed capability of the engine which can be used without interruption or load cycling.

Performance at SAE standard conditions of 29.38 in (746 mm) Hg. and 85°F (30°C)-SAE J816. Metric conditions are 736 mm (28.97 in) Hg. and 20°C (68°F)-DIN 6270.

Fuel Consumption is based on fuel oil having a HHV of 19,590 btu/lb. (45,570 kJ/kg) and weighing 7.076 Lb. per U.S. gal (848 gm per litre).

Other Ratings Published intermittent and continuous ratings are a general guide for world-wide use over a broad application range. Other ratings, yielding higher performance and economic return, are available to meet the requirements of particular applications.

Miscellaneous Information



Maximum is the horsepower capability of the engine that can be demonstrated within 5% at the factory.

Shaft Horsepower is the output capability the engine equipped with air cleaner, fuel, lube oil jacket water pump and marine gear i.e. net output.

Intermittent is the horsepower and speed capa bility in applications having variable speed and/o load requirements.
